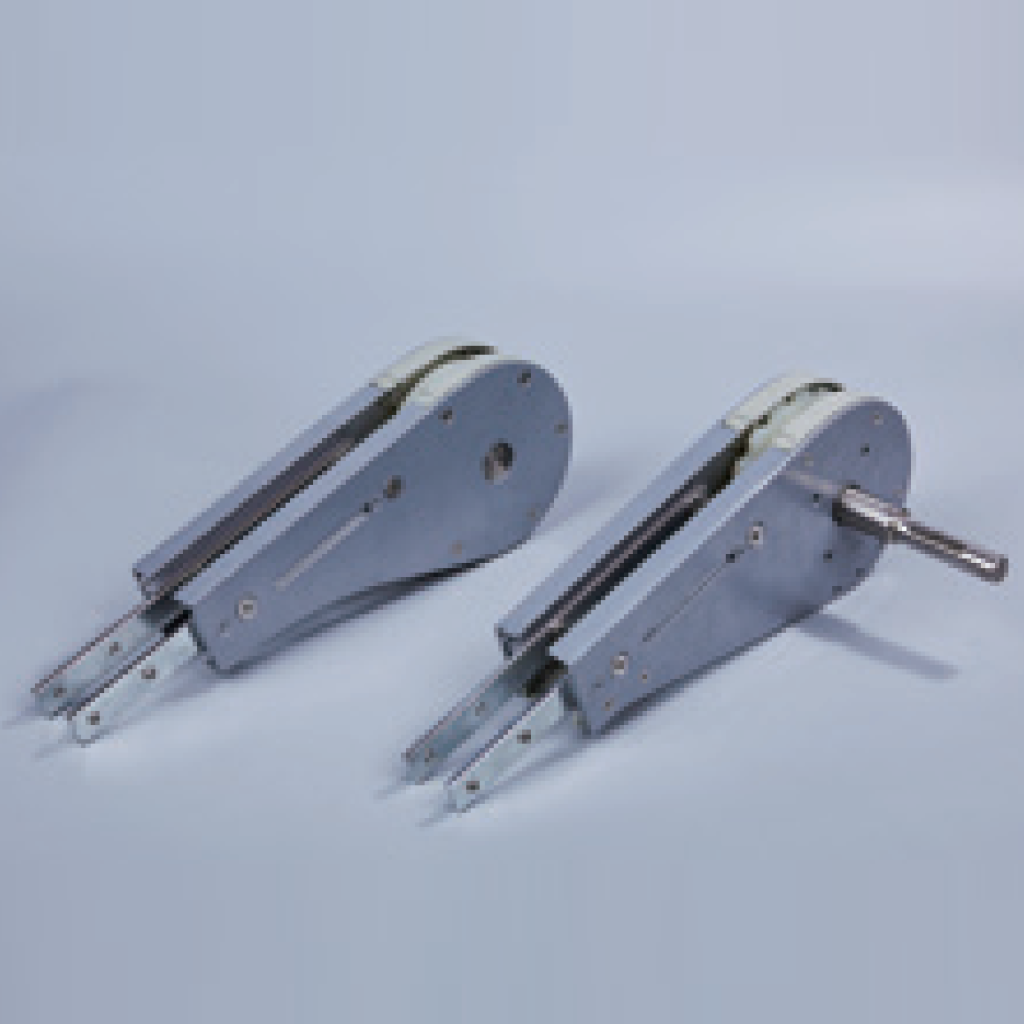

Stainless Drive and Return Unit
test
产品详情
Stainless Drive and Return Unit specification:
- Adapt flexible chain size :63mm,83mm,103mm
- Material : SUS
- Optional motor power : 200W/250W/370W/750W
- Optional speed: 6,9,12,15,18,21,27,33,40,50 (m/min)
- Maximum pull force: 1250N
Key benefits:
- The motor can be installed on the left or right side and can be flexibly adjusted
- Compact design, easy to install and disassemble
- Low operating noise (＜30dB)
- Side slot design for support mounting
- Model :KF-L-63SUS
- Body Material : SUS
- Adapt Chain Width/mm :63
- Model :KF-M-83SUS
- Body Material : SUS
- Adapt Chain Width/mm :83
- Model :KF-H-103SUS
- Body Material : SUS
- Adapt Chain Width/mm :103
