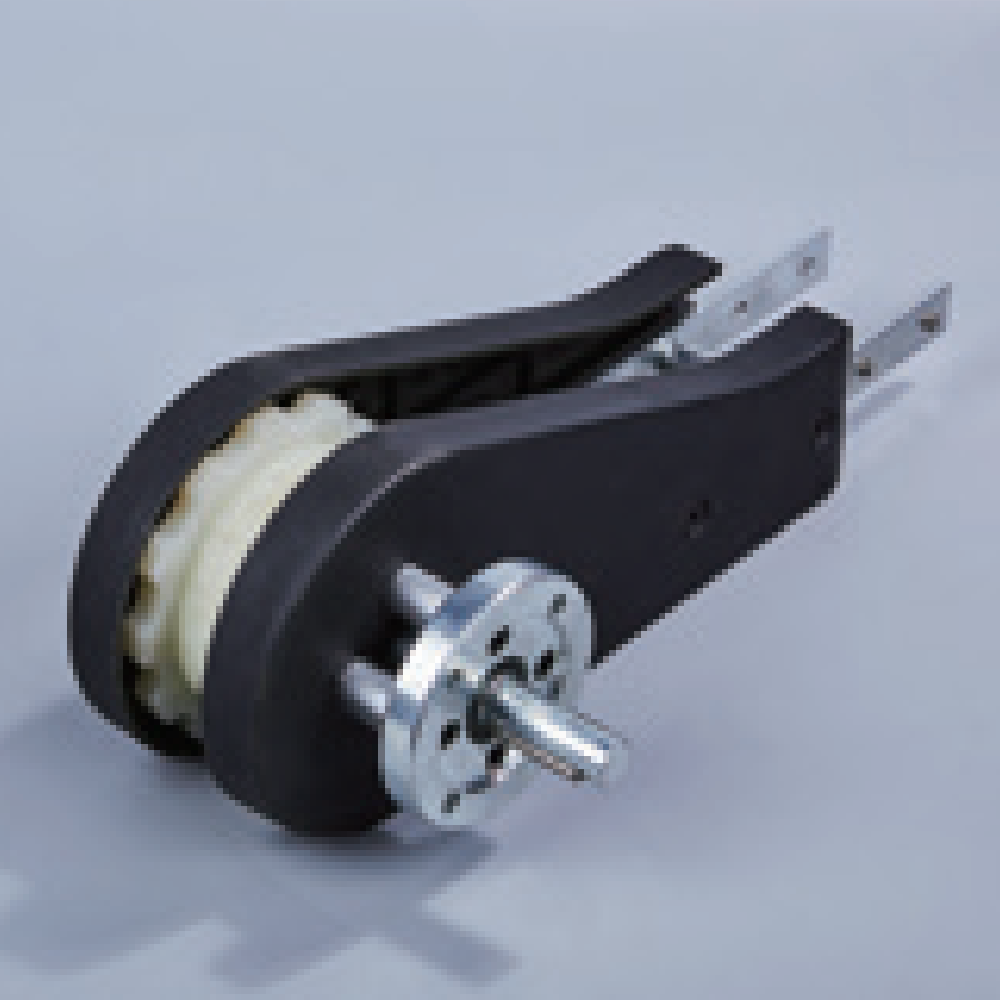

Plastic drive unit specification:
- Adapt flexible chain size :43mm,63mm,83mm,103mm
- Material :PA6+Gf30%
- Optional motor power : 200W/250W/370W/750W
- Optional speed: 6,9,12,15,18,21,27,33,40,50 (m/min)
- Maximum pull force: 1250N
Key benefits:
- The motor can be installed on the left or right side and can be flexibly adjusted
- Compact design, easy to install and disassemble
- Low operating noise (＜30dB)
- Side slot design for support mounting
- Model :KF-S-43
- Body Material : PA6+Gf30%
- Adapt Chain Width/mm :43
- Model :KF-S-43(Extension)
- Body Material :PA6+Gf30%
- Adapt Chain Width/mm :43
- Model :KF-L-63
- Body Material :PA6+Gf30%
- Adapt Chain Width/mm :63
- Model :KF-L-63(Extension)
- Body Material :PA6+Gf30%
- Adapt Chain Width/mm :63
- Model :KF-M-83
- Body Material :PA6+Gf30%
- Adapt Chain Width/mm :83
- Model :KF-H-103
- Body Material :PA6+Gf30%
- Adapt Chain Width/mm :103
