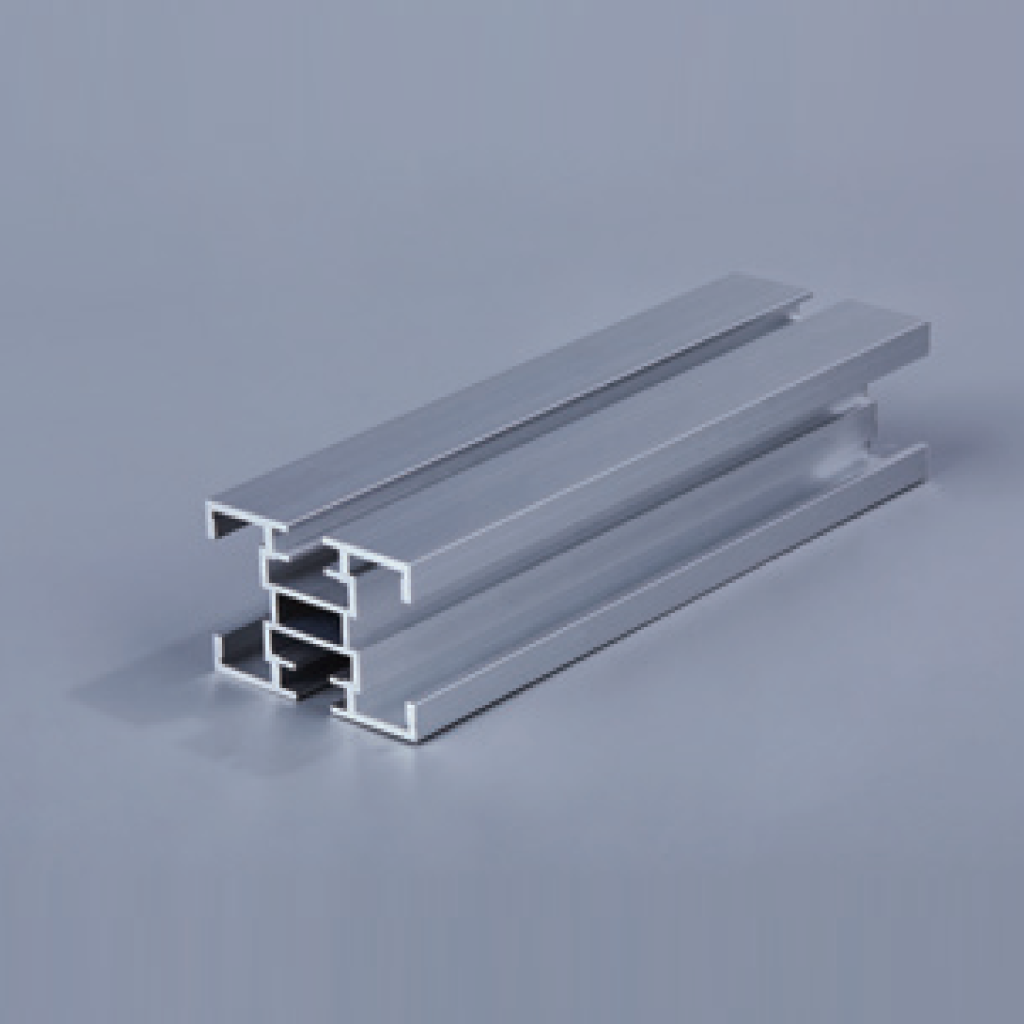

Full conveyor section profile
产品详情
Full conveyor section profile specification :
- Adapt chain width/mm :43,63,83,103,140,175,295,82.6(stainless chain)
- Material :Alloy 6063

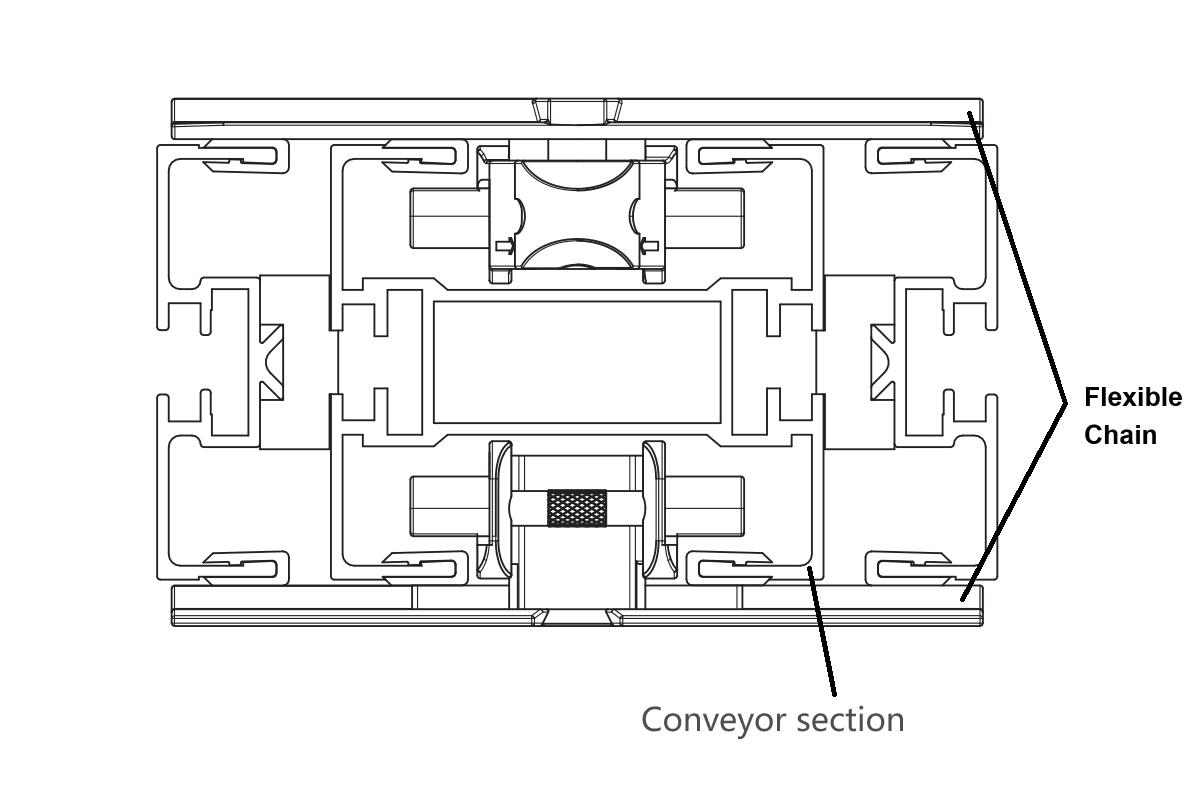

Installation diagram:

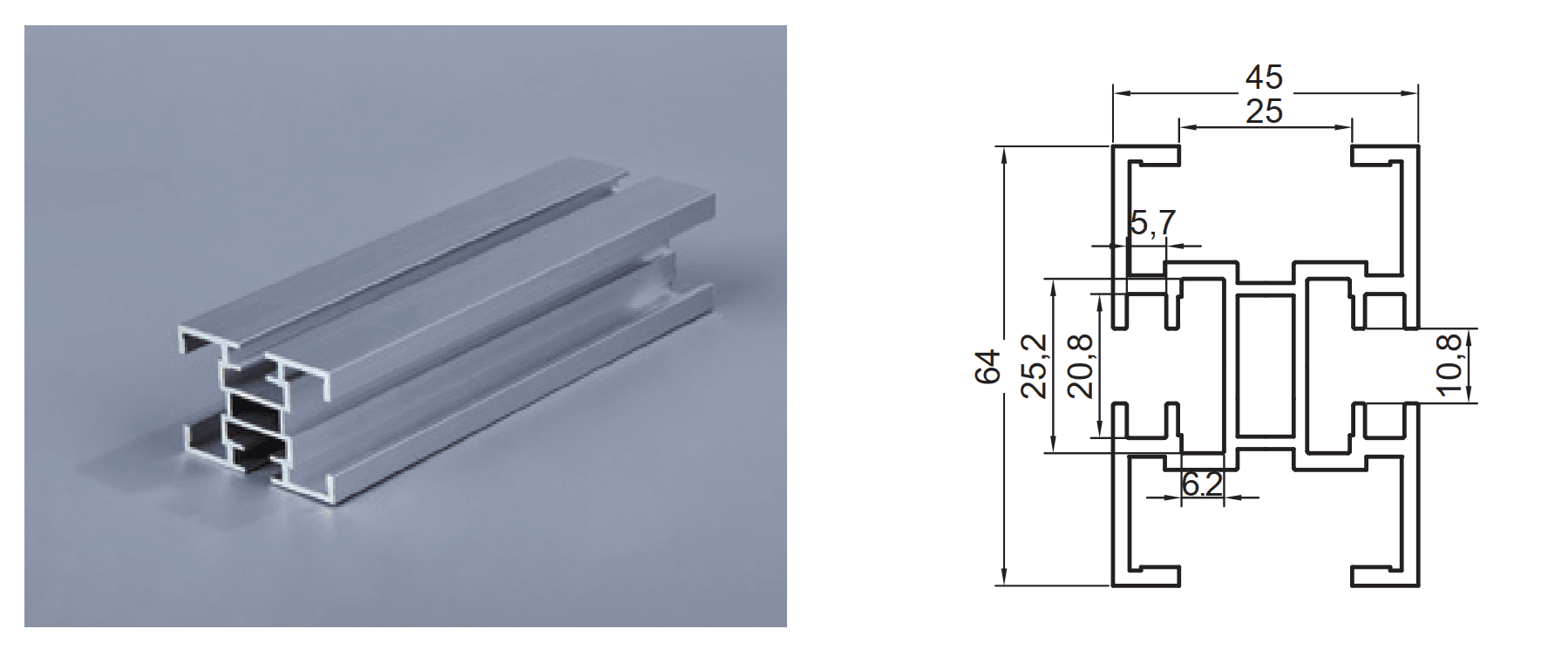

- Model :KF-S-45
- Adapt Chain Width/mm :43
- Name :45 conveyor section profile
- Model :KF-L-65
- Adapt Chain Width/mm :63
- Name :65 conveyor section profile
- Model :KF-M-85
- Adapt Chain Width/mm :83
- Name :85 conveyor section profile
- Model :KF-H-105
- Adapt Chain Width/mm :103
- Name :105 conveyor section profile
- Model :KF-B-145
- Adapt Chain Width/mm :140
- Name :145 conveyor section profile
- Model :KF-B-180
- Adapt Chain Width/mm :175
- Name :180 conveyor section profile
- Model :KF-B-300
- Adapt Chain Width/mm :295
- Name :300 conveyor section profile
