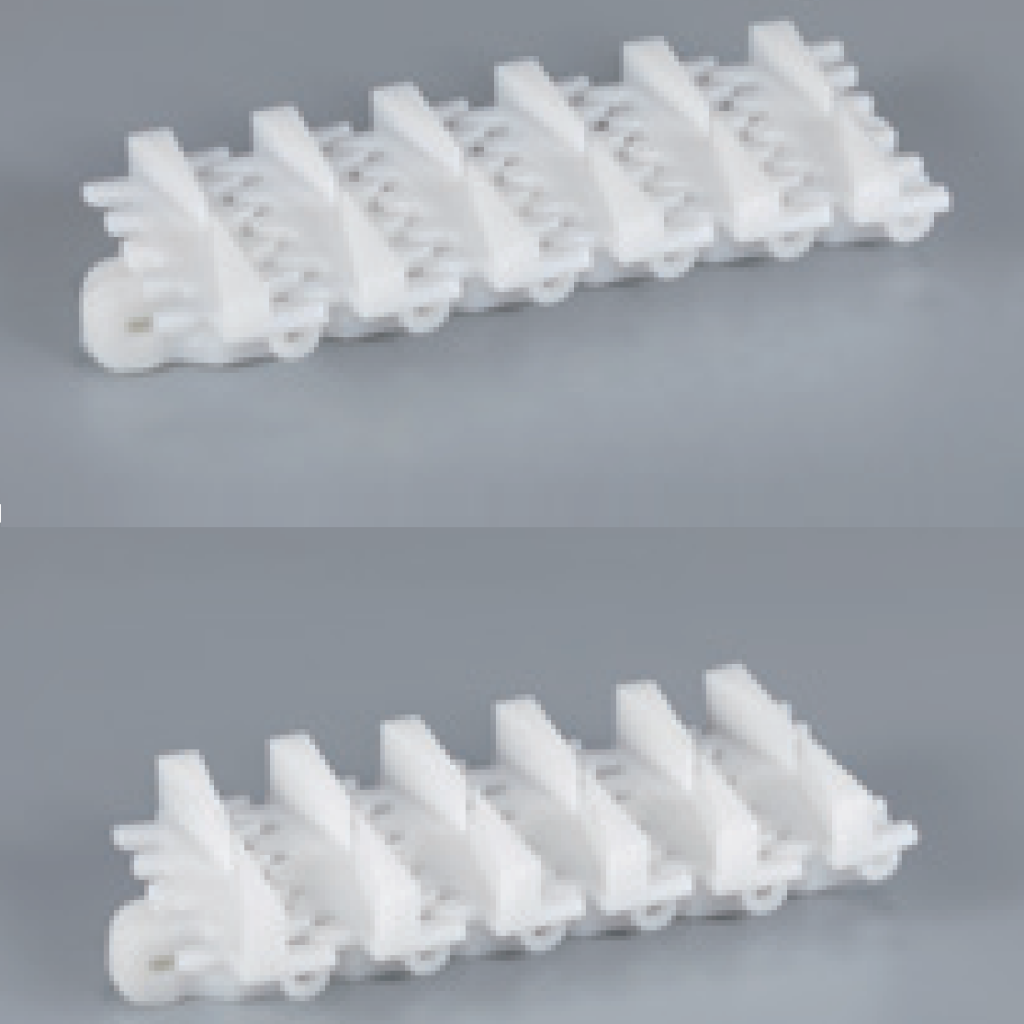

63mm Width Flexible Chain
产品详情

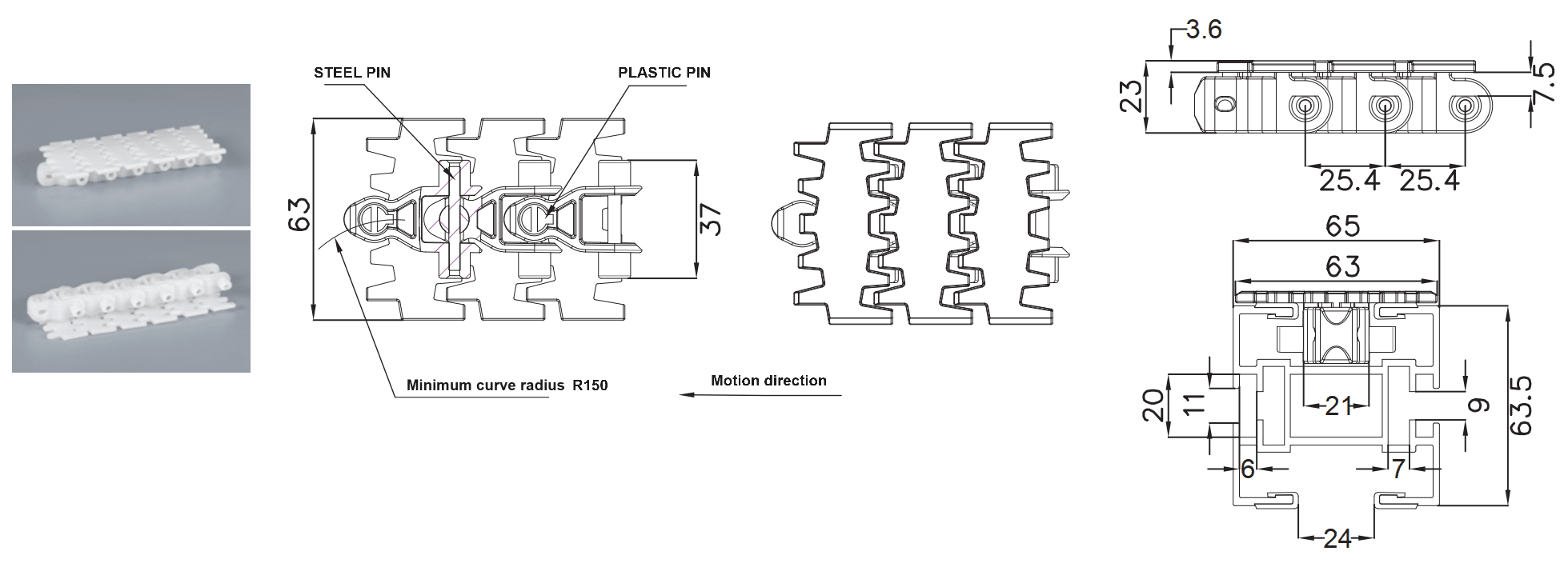

63mm width flexible chain specification :
- Chain width/mm :63
- Body Material :POM
- Pitch/mm:25.4
- Maximum pull force: 1250N
Key benefits:
- FDA standard,suitable for food and medical transferring
- Low operating noise (＜30dB)
- Easy to assemble and maintaining
- Multiple types of chain for different industrial application
- Flexible design for different layout requirements
- High wear resistance and low dust
- Model :KF-L-001
- Body Material :POM
- Chain Width/mm :63
- Name :63 Flat chain
- Model :KF-L-002
- Body Material :POM
- Surface Material :TPU
- Adapt Chain Width/mm :63
- Name :63 Full rubber anti-skid chain
- Model :KF-L-003
- Body Material :POM
- Surface Material :TPU
- Adapt Chain Width/mm :63
- Name :63 Wooly chain
- Model :KF-L-004
- Body Material :POM
- Surface Material :SUS304
- Adapt Chain Width/mm :63
- Name:63 Steel top chain
- Model :KF-L-005
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Triangle lift chain
- Step height (H)/mm :5.5 or 12
- Model :KF-L-006
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Single side triangle lift chain
- Lift direction :Left or Right
- Model :KF-L-007
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Eight-Shaped lift chain
- Step height(H)/mm :6 or 8
- Model :KF-L-008
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 V shape chain
- Model :KF-L-009
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Line-Shaped lift chain
- Step height(H)/mm :15 or 20
- Model :KF-L-010
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Crescent chain
- Model :KF-L-011
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Crescent lift chain
- Model :KF-L-012
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Line-Shaped middle lift chain
- Model :KF-L-013
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Left side lift chain
- Model :KF-L-014
- Body Material :POM
- Adapt Chain Width/mm :63
- Name :63 Right side lift chain
