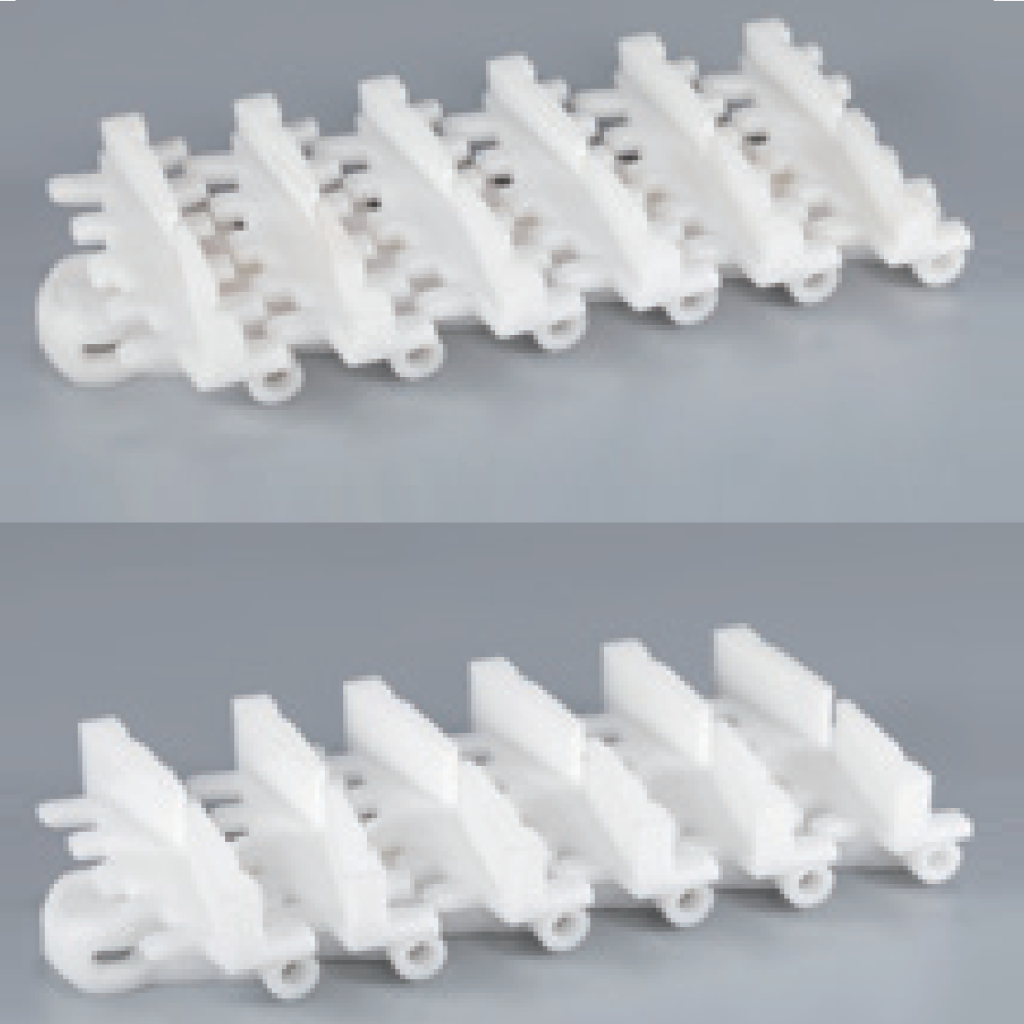

103mm Width flexible chain
产品详情

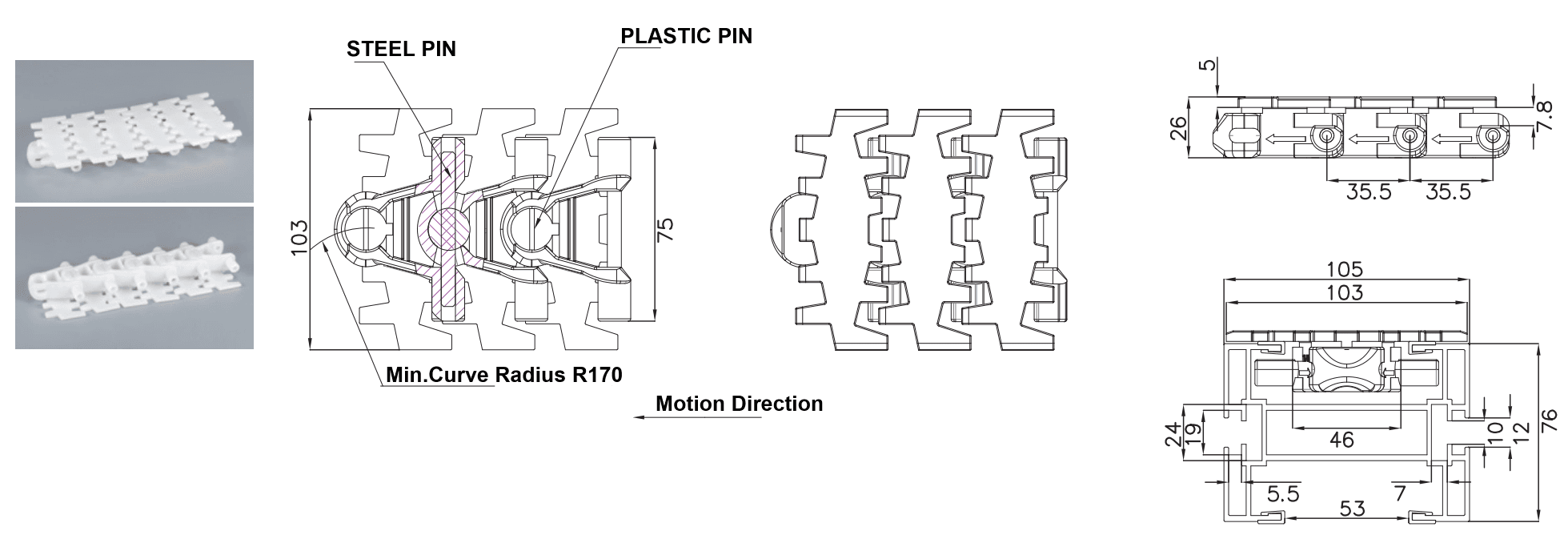

103mm width flexible chain specification :
- Chain width/mm :103
- Body Material :POM
- Pitch/mm:35.5
- Maximum pull force: 1250N
Key benefits:
- FDA standard,suitable for food and medical transferring
- Low operating noise (＜30dB)
- Easy to assemble and maintaining
- Multiple types of chain for different industrial application
- Flexible design for different layout requirements
- High wear resistance and low dust
- Model :KF-H-001
- Body Material :POM
- Chain Width/mm :103
- Name :103 Flat chain
- Model :KF-H-002
- Body Material :POM
- Surface Material :SUS304
- Adapt Chain Width/mm :103
- Name :103 Steel top chain
- Model :KF-H-003
- Body Material :POM
- Surface Material :TPU
- Adapt Chain Width/mm :103
- Name :103 Full rubber anti-skid chain
- Model :KF-H-004
- Body Material :POM
- Surface Material :TPU
- Adapt Chain Width/mm :103
- Name:103 Full rubber beam anti-skid chain
- Model :KF-H-005
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Triangle lift chain
- Step height (H)/mm :8 or 15
- Model :KF-H-006
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Roller chain
- Model :KF-H-007
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Wheel chain
- Model :KF-H-008
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Line-Shaped lift chain
- Model :KF-H-009
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Right side lift chain
- Model :KF-H-010
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Left side lift chain
- Model :KF-H-011
- Body Material :POM
- Adapt Chain Width/mm :103
- Name :103 Wave chain
